Rack Series Battery Cabinets
High-Capacity Indoor Storage. Built to Scale.
PowerPlus Energy’s Rack Series is an indoor enclosure range designed to simplify scalable battery installations. Built from the data rack format electricians know and work with every day, it provides a familiar foundation for organised, professional system layouts. Each cabinet is pre-wired and easily paralleled, helping speed up installation while supporting long-term reliability and future expansion.
Jump to section
RACK RANGE OVERVIEW
Scalable capacity from 24kWh to 80kWh
Parallel cabinet capability for system expansion
Suits battery expansion projects
Built for controlled indoor environments
Designed for growing energy demands, Rack Series cabinets deliver scalable capacity & structured installs that support larger, high-performance systems.

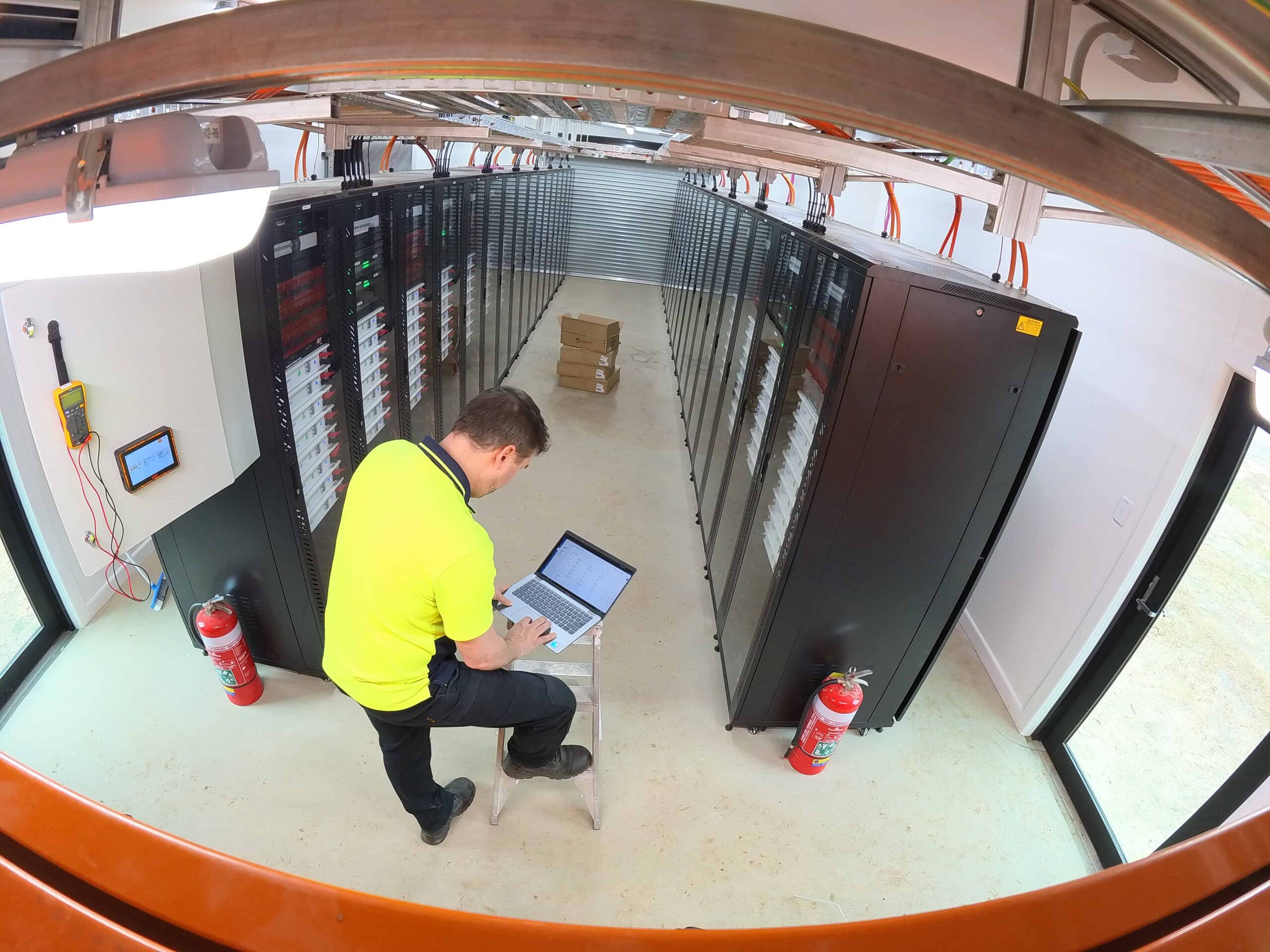

Reliable Energy Storage For Expanding Installations
From Compact Units to High-Capacity Storage Solutions
Discover a range of high-capacity battery cabinets offering flexible configurations, scalable storage and space-efficient designs, ideal for growing energy systems from compact setups to large-scale installations.

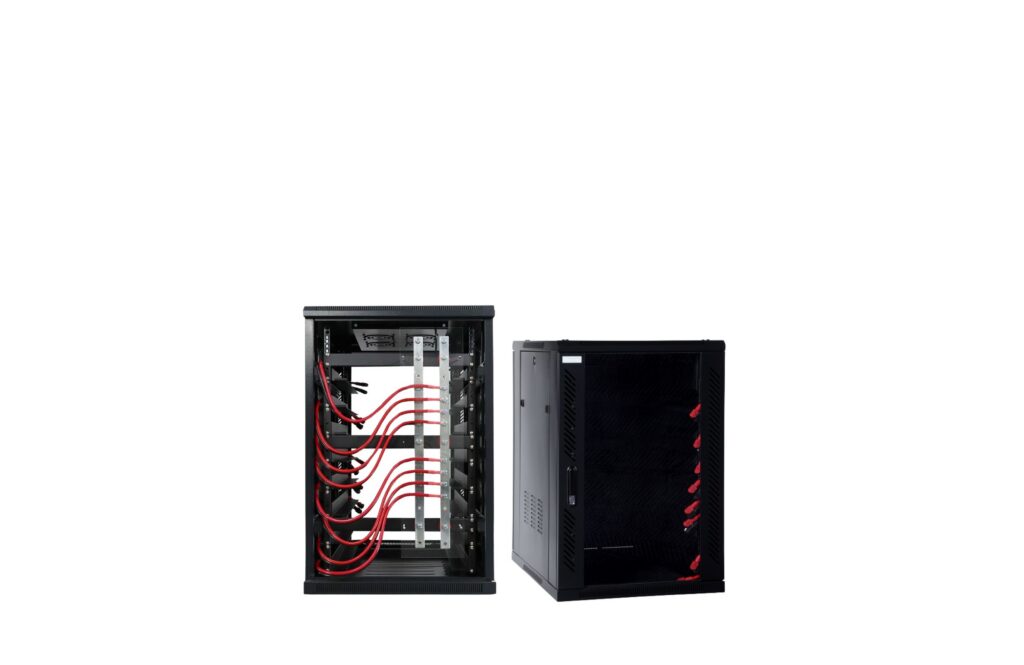

PIR8C: Store Up To 32kWh Of Energy
Compact and efficient, ideal for tight spaces where height is a concern or smaller systems.
- Battery Slots – 8
- Dimensions (H x W x D mm) – 990 x 600 x 800
- Configuration – 2RU
- Weight – 95kg

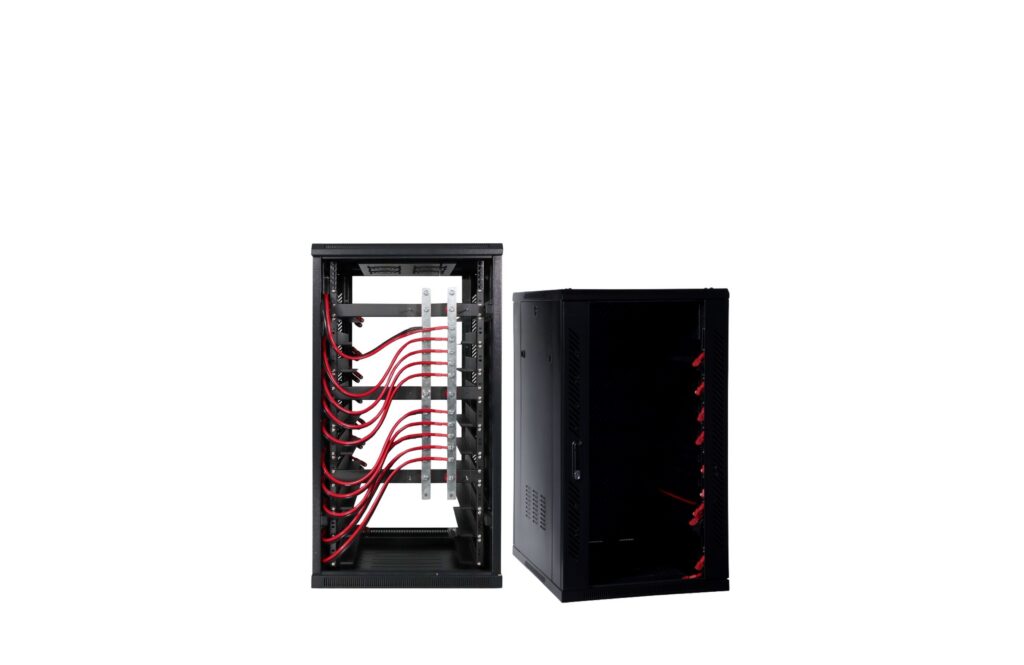

PIR10C: Store Up To 40kWh Of Energy
Our most popular choice by installers, combining capacity with ultimate flexibility.
- Battery Slots – 10
- Dimensions (H x W x D mm) – 1166 x 600 x 800
- Configuration – 2RU
- Weight – 110kg

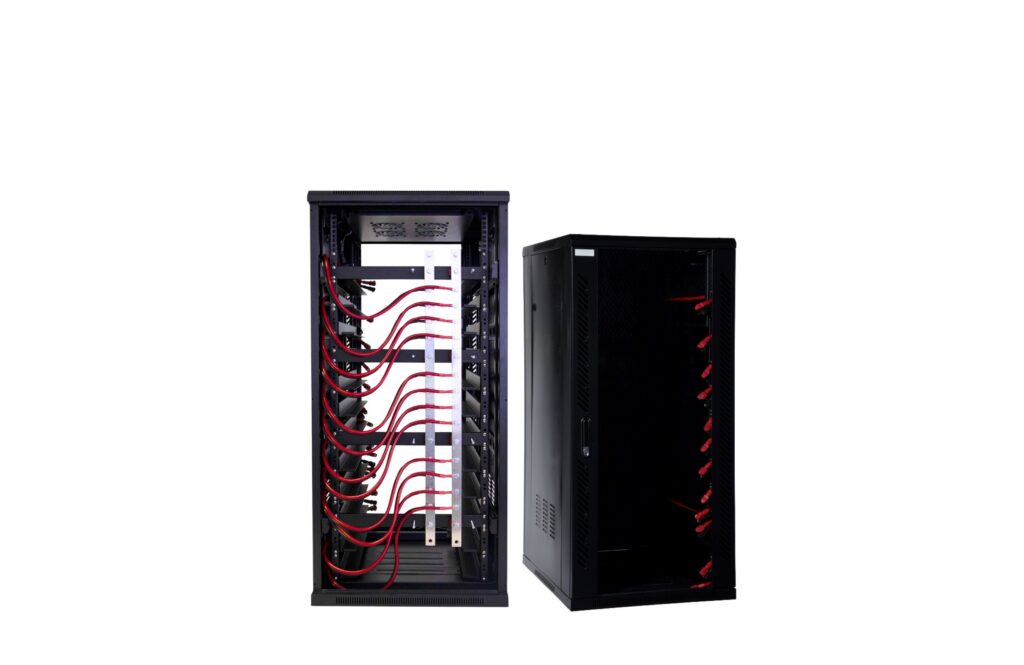

PIR12C: Store Up To 48kWh Of Energy
Mid-range option with room to grow, perfect for expanding systems.
- Battery Slots – 12
- Dimensions (H x W x D mm) – 1400 x 600 x 800
- Configuration – 2RU
- Weight – 132kg

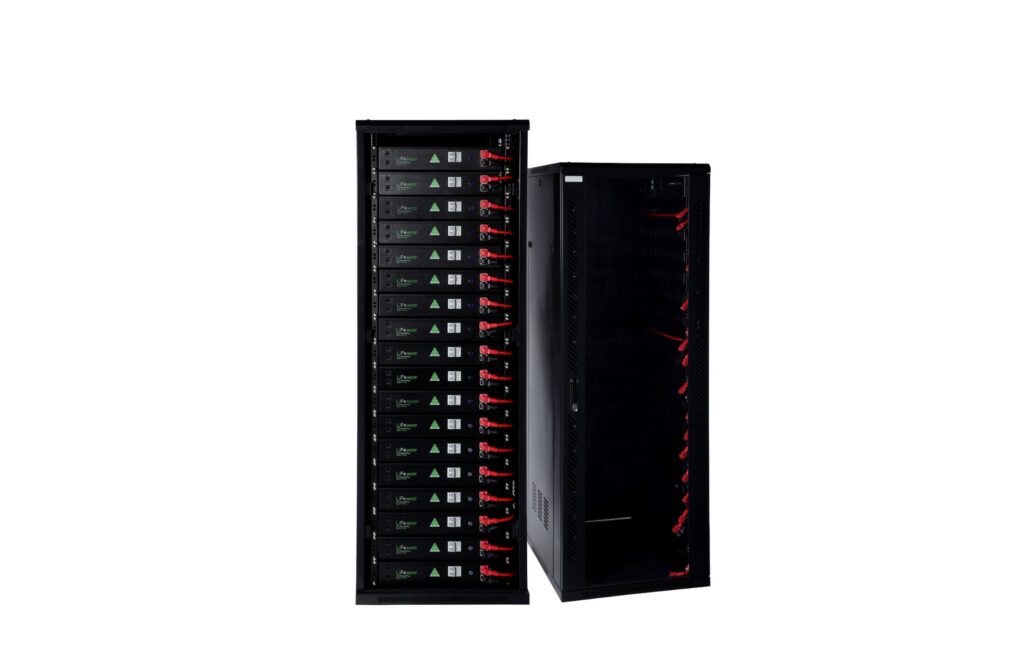

PIR18C: Store Up To 72kWh of energy
Plenty of capacity for future expansion and larger setups.
- Battery Slots – 18
- Dimensions (H x W x D mm) – 1800 x 600 x 800
- Configuration – 2RU
- Weight – 174kg

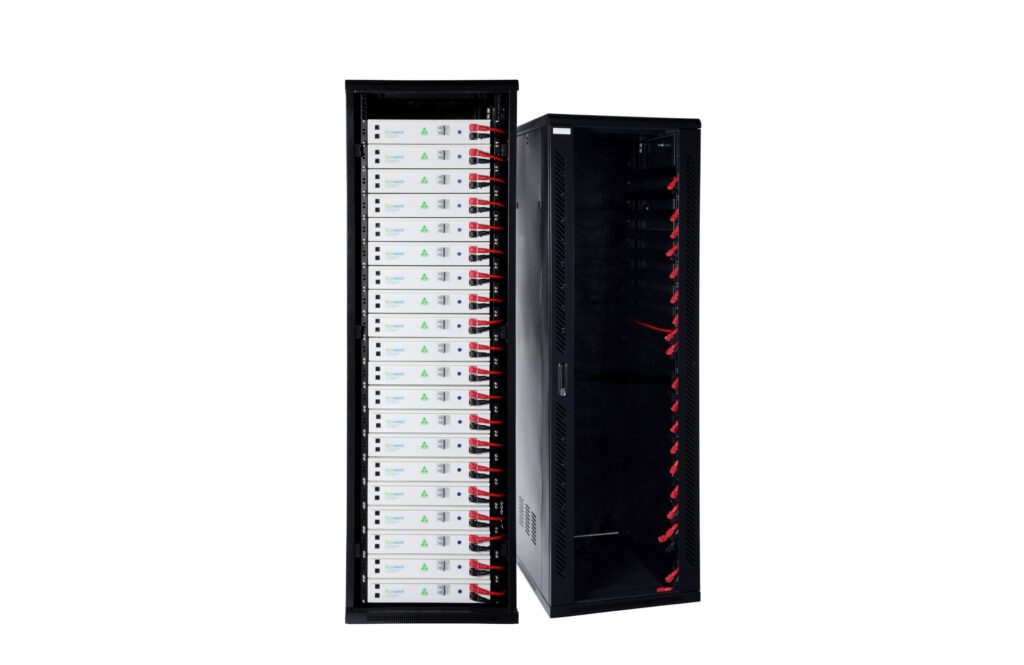

PIR20C: Store Up To 80kWh Of Energy
Our largest cabinet, designed for big projects and maximum storage.
- Battery Slots – 20
- Dimensions (H x W x D mm) – 1950 x 600 x 800
- Configuration – 2RU
- Weight – 187kg
Advanced Cabinet Engineering For Reliable Operation
Designed For Safe & Efficient Installations
Thoughtfully engineered for reliability and ease of installation, these cabinets support efficient system integration while ensuring safe operation, flexible setup and consistent long-term performance.
Engineering Details
- 1000A continuous rated busbar with M8 stud
- Amphenol Surlok connectors with 16mm double insulated cable pre-installed
- Top or bottom cable entry
- Adjustable locking feet and caster rollers
- IP21 rated for indoor use
Designed to scale. Parallel easily.
Simply parallel, commission & expand as required
Our Rack Series cabinets support system expansion through parallel configuration, allowing battery capacity to increase as project requirements grow.
- Parallel-ready architecture: Infinitely scale capacity by adding additional battery modules or rack cabinets in parallel as system demand grows.
- Industry-familiar design: Built around rack layouts and busbar architecture installers already know, simplifying system design and integration.
- Future-ready scalability: Scale from small battery banks to large installations without redesigning the entire system.

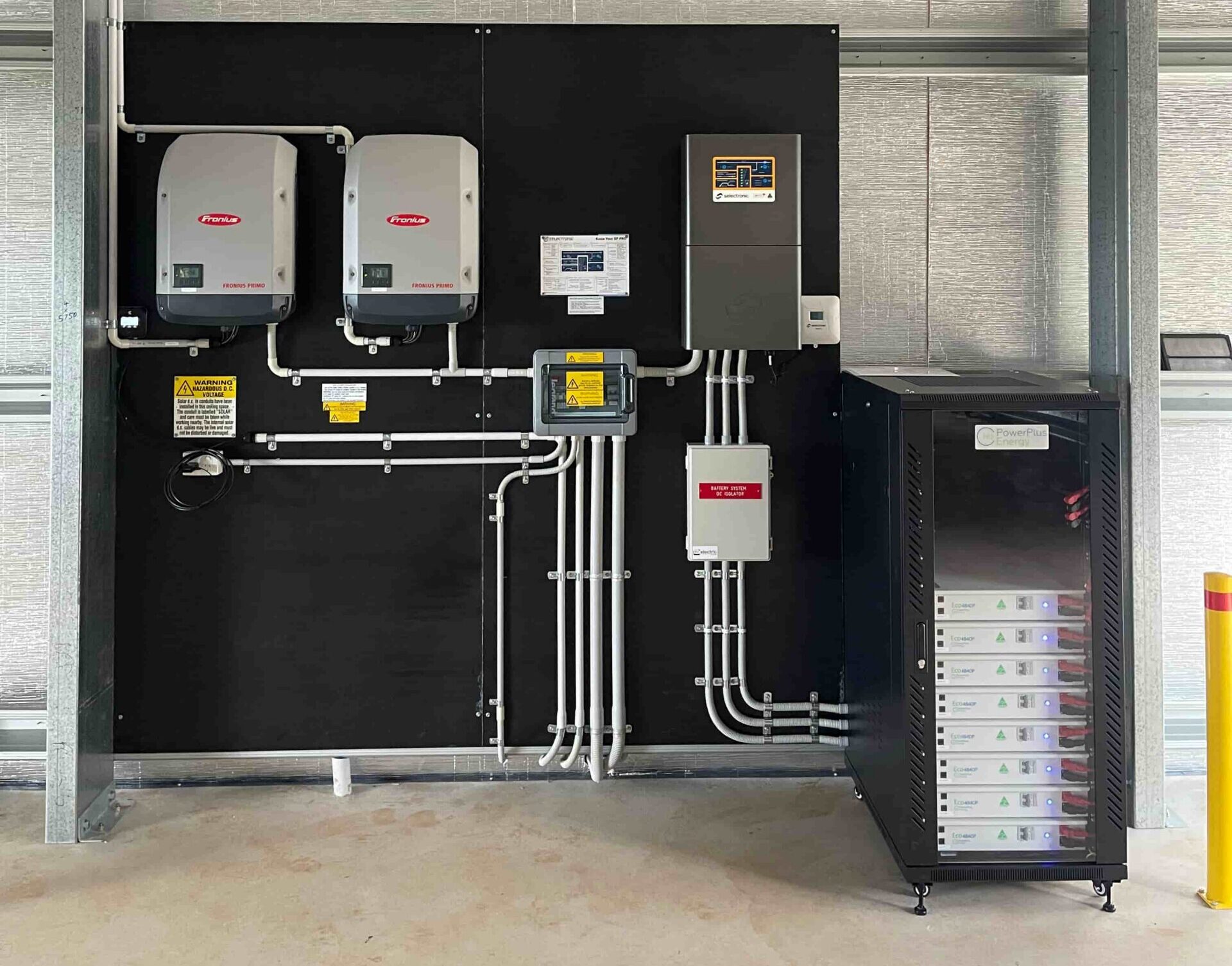

Designed For Australian Energy System Demands
Australian Made. Site Ready.

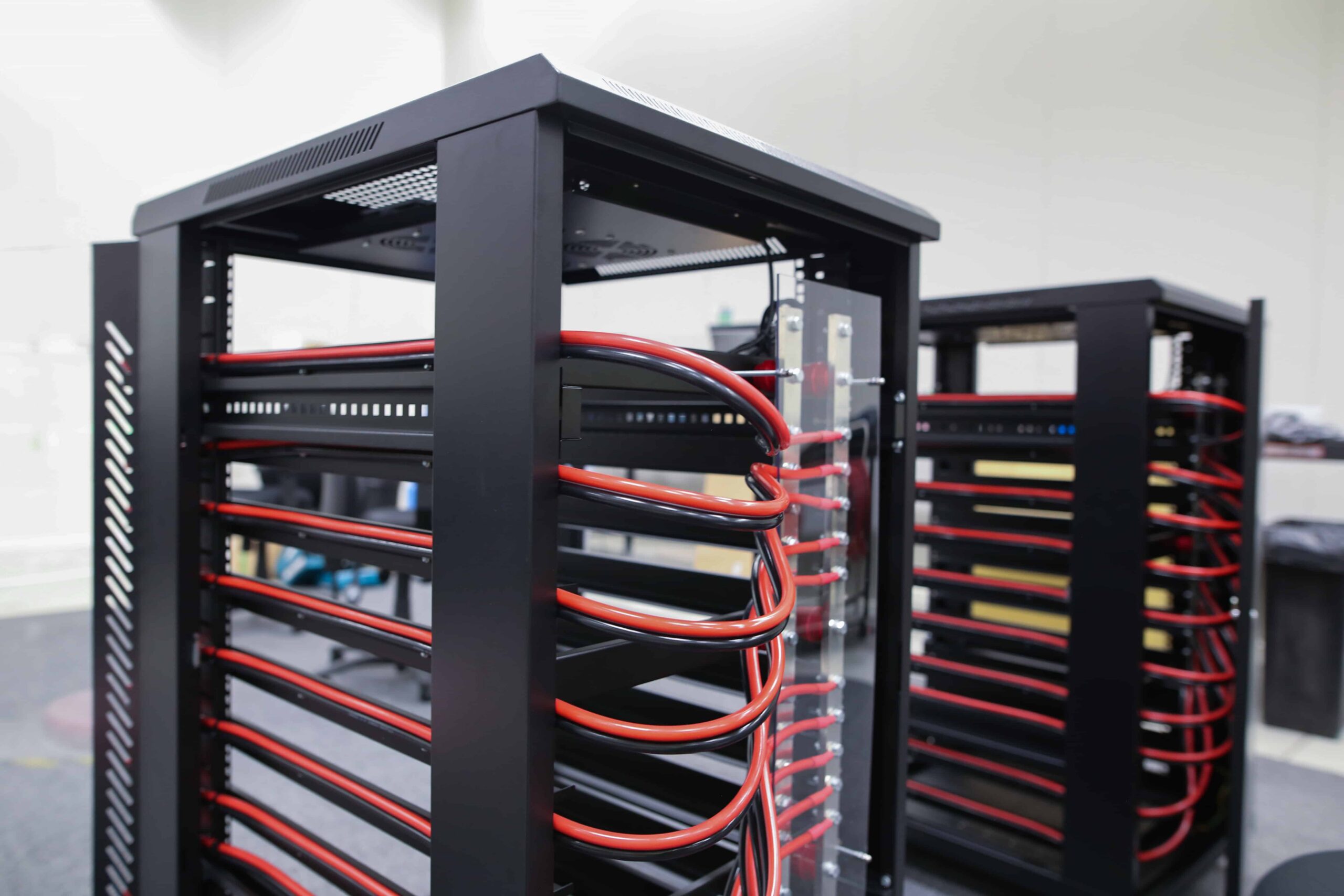

Our Rack Series cabinets are proudly manufactured and assembled in Australia, pre-wired, quality controlled and prepared for straightforward on-site integration, reducing install time and improving reliability.
Pre-Wired For Faster Installs

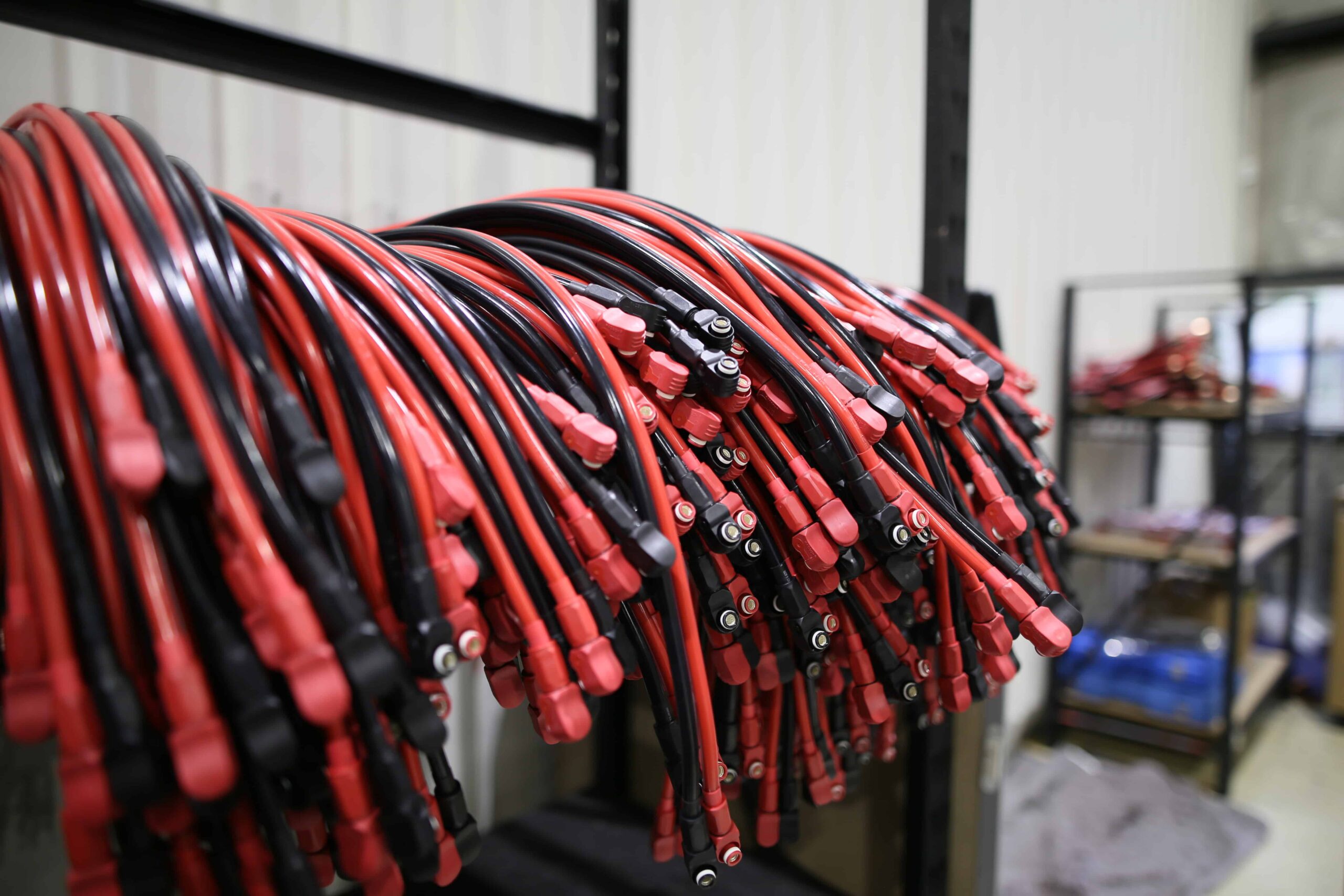

Australian-made cables with precision-crimped terminations mean batteries slide in and connect quickly.
Quality Components Throughout
Built with durable, high-grade parts designed for long-term performance in demanding environments.
Ready Out Of The Box
Fully assembled and quality controlled by our experienced local team, so installers spend less time wiring and more time efficiently commissioning.
A Trusted, Local Brand Respected By Experts, Built Around You
Why Choose PowerPlus Energy Cabinets Solutions
PowerPlus Energy delivers expert local support, installer-focused design and rigorous quality control—ensuring efficient installations, dependable performance and confidence across every stage of your project lifecycle.
Speak To A Local Team Member
Putting customers first, from honest guidance to reliable support, 24/7 onshore technical support pre and post sales.
Tailored for a Smoother install
Designed with practicality and performance in mind, our slimline cabinets come pre-wired and optimised for straightforward, quick installation.
Quality assurance at every stage
All cabinets are rigorously tested to meet Australian compliance standards and pre-wired to ensure safe, high-performance energy storage.
